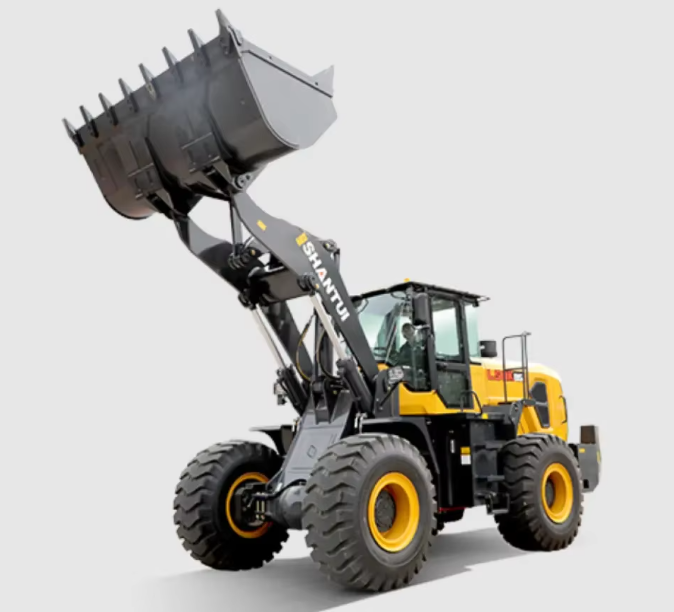

Emission Regulation – Tier 2 / Stage II

Model – Weichai WP6G125E22

Rated Power – 92 kW @ 2,200 rpm

Max Torque – 500 N · m

Displacement – 6.754 L

Number of Cylinders – 6

Aspiration – Turbocharged

Tipping Load – Full Turn – 60 kN

Bucket Breakout Force – 95±3 kN

Maximum Dump Angle at Full Height – 45°

Dump Clearance at Full Height Discharge – 3250 mm

Dump Reach at Full Height Discharge – 1000 mm

Maximum Hinge Pin Height – 4060 mm

Maximum Digging Depth, Bucket Level – 15 mm

Bucket Capacity – 1.7 m3

Operating Weight – 10300kg

Transmission Type – Countershaft, power shift

Torque Converter – Single stage, three elements

Maximum Travel Speed, fwd – 36 km/h

Maximum Travel Speed, rev – 28 km/h

Number of Speeds, fwd – 4

Number of Speeds, rev – 2

Differential Front Type – Conventional

Differential Rear Type – Conventional

Axle Oscillation – ±10°

Steering Configuration – Articulated

Steering System Pressure – 14 Mpa

Service Brake Type – Caliper disc brake

Service Brake Actuation – Air over Hydraulic

Parking Brake Type – Flexible shaft control

Parking Brake Actuation – Mechanical

Tire Size – 17.5-25

Main Pump Type – Gear

Main Relief Pressure – 16 Mpa

Raise time – 5.0 S

Total Cycle Time – 9.0 S

Fuel Tank – 200 L

Hydraulic oil Tank – 165 L

Engine Oil – 14 L

Axles, each – 36 L

Transmission – 36 L

Cooling System – 27 kg

Length – 7450 mm

Width – 2430 mm

Height – 3180 mm

Wheelbase – 2850 mm

Wheel Tread – 1850 mm

Ground Clearance – 345 mm

Turn Angle, Either Side – 35°

Turning Radius, Outside of Tire – 5700 mm

Turning Radius, Center of Tire – 5450 mm

Turning Radius, Bucket Carry – 6250 mm
