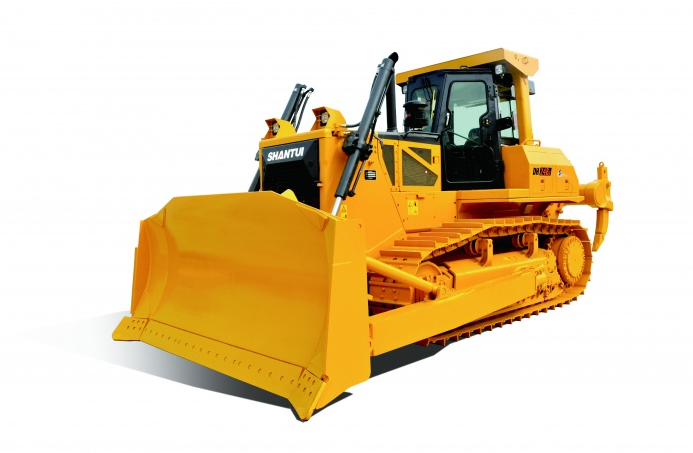

Engine: Weichai WD12G250E202
Emission: EURO 2
Rated revolution: 2100 rpm
Gross power: 185 kW (240 hp)*
Net power: 167 kW (224 hp)
Displacement: 11,596 L
Max. torque: 1200 Nm @ 1300-1400 rpm
Cooling System: Mechanical fan
Number of cylinder – bore x stroke: 6 – 126 x 155 mm
Minimum fuel consumption: 198 g/kW.h
Drive system: Independent dual-circuit electric control hydrostatic drive, intelligent matching of speed-load, stepless variable speed, monolever control of travel, speed and steering; steering with load pivot steering, work flexibly, high efficiency, easy for maintenance
System overflow pressure: 45000 kPa
Traveling speed: Forward 0~11 km/h, Backward 0~11 km/h
Max. theoretical traction force: 368 kN
Steering: Independent drive of track at both sides to ensure the full power output for pivot steering and steering with load
Brake: Regular closed multi-disk brake
Final drive: Double-reduction final drives of spur gear and planetary gear
Type: Pivot, equalizing beam suspended type, semirigid structure
Track shoe type: Single grouser
Track gauge: 2000 mm
Width of track shoe: 560 mm
Track grounding length: 3050 mm
Track grounding area: 34160 mm
Number of track shoe: 41 pcs/side
Grounding pressure: 68.3 kPa
Number of carrier roller: 2 pcs/side
Number of track roller: 7 pcs/side
Pitch: 216 mm
Minimum turning radius: 4210 mm
Fuel capacity: 489 L
Coolant liquid capacity: 55 L
Engine oil capacity: 24 L
Hydraulic oil tank: 105 L
Final drive: 30L/side
Transfer case: 10 L
Machine + ripper: 26,466 kg
Blade type: Semi-U blade
Blade capacity: 6.5 m³
Machine height (with ROPS): 3335 mm
Machine length with ripper: 7428 mm
Max. lifting height of blade: 1247 mm
Max. digging depth of blade: 540 mm
Blade width: 3642 mm
Blade height: 1580 mm
Track shoes outside width: 2560 mm
Track grouser height: 72 mm
Ground clearance: 450 mm
Digging angle of blade: 55°±3° (deg.)
Max blade tilt height: 840 mm
Type: Three shank ripper
Weight: 2646 mm
Maximum ripping depth: 655 mm
Maximum lifting height: 567 mm
Ripper length (at deepest ripping): 1882 mm
Ripper length (at highest ripping): 1547 mm
Width: 2158 mm
Departure angle (at highest point): 16.35°
Ripping width: 2000 mm
Distance between ripper teeth: 1000 mm
NTEGRATED ROPS
REVERSE BUZZLE
FIRE EXTINGUISHER
AIR CON
STROBE LIGHT
REFLECTIVE TAPES
CAB FAN
RADIO
